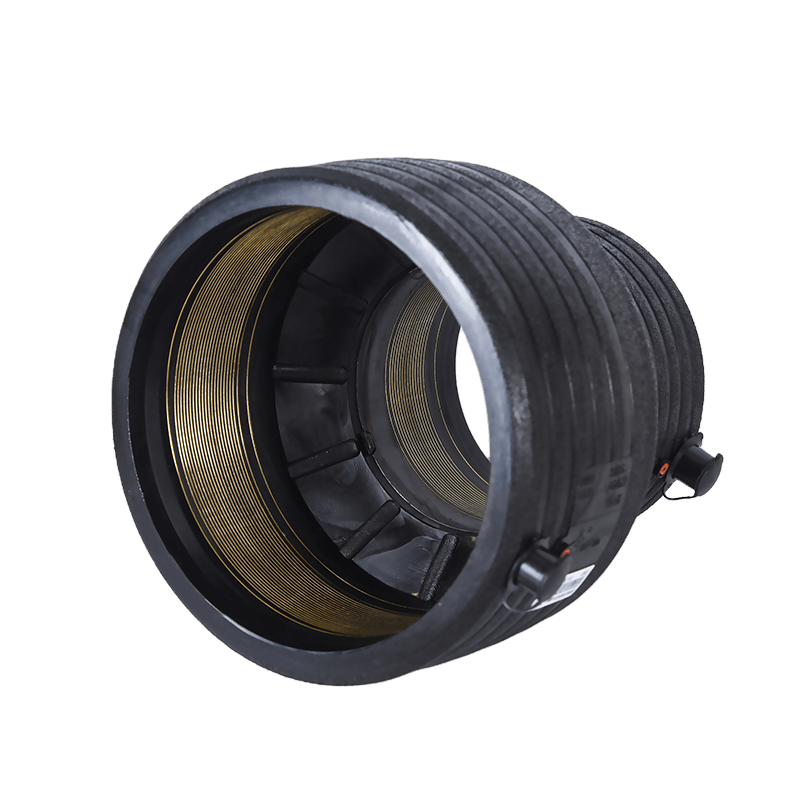

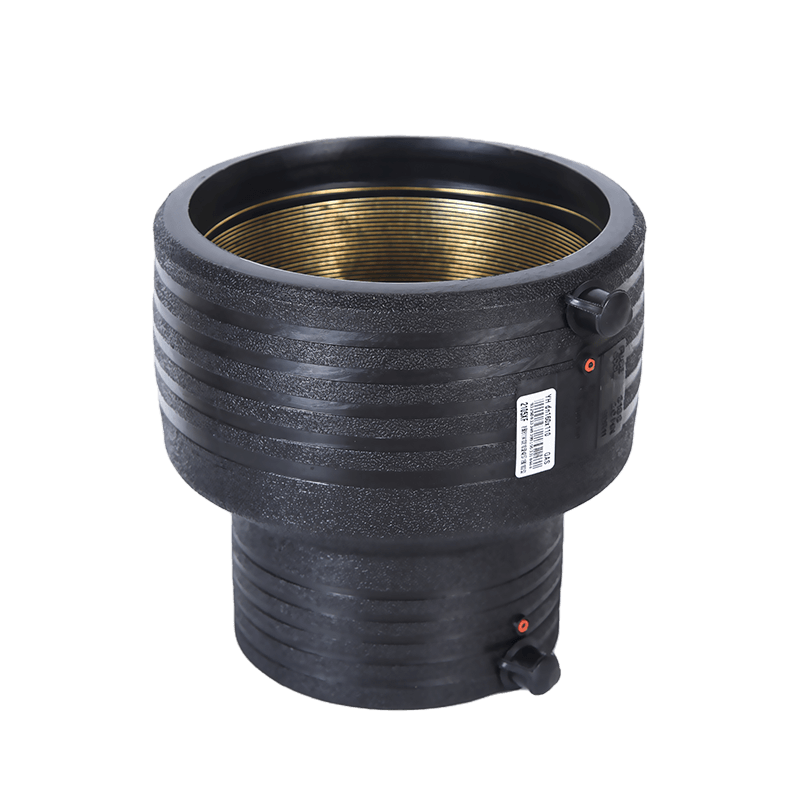

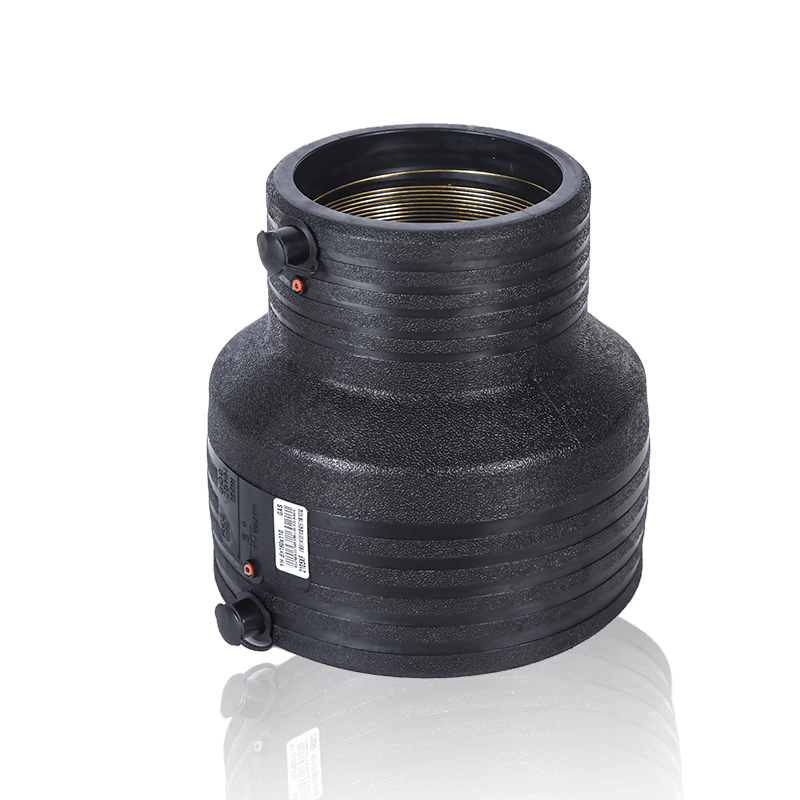

Electrofusion Reducer

Home / Product / Electrofusion Fittings / Electrofusion Reducer

Electrofusion Reducer

ElectroFusion Reducer:
 1. Raw Material : PE100  Borsafe HE3490-LS   or PE80
 2. used in Industrial Natural Gas  , Petroleum, Drinking Water ,Overland & Subsea Pipeline ect...
3. Injection Mold size up to Dn1200mm  ( PN16 or PN10)
 4. HDPE PIPE FULL SIZE SDR11 and SDR17

Product Description

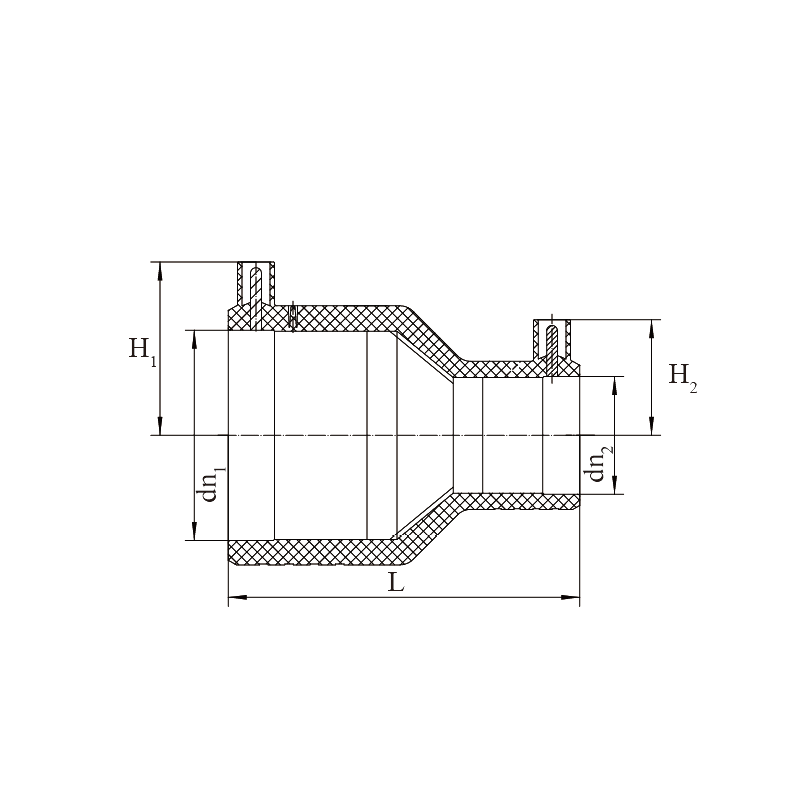

Specification Dn1xdn2 Item dn1xdn2 H1 H2 L
25×20 25/20 25×20 35 30 100
32×25 32/25 32×25 36 31 100
40×32 40/32 40×32 44 41 102
50×32 50/32 50×32 50 41 107
50×40 50/40 50×40 50 44 110
63×32 63/32 63×32 60 40 123
63×40 63/40 63×40 60 45 125
63×50 63/50 63×50 60 50 125
75×63 75/63 75×63 63 58 140
90×63 90/63 90×63 76 60 158
90×75 90/75 90×75 76 68 164
110×63 110/63 110×63 85 60 170
110×90 110/90 110×90 87 76 175
160×90 160/90 160×90 112 76 195
160×110 160/110 160×110 112 80 195
200×90 200/90 200×90 130 75 215
200×110 200/110 200×110 130 85 215
200×160 200/160 200×160 130 110 215
250×l10 250/l10 250×l10 161 85 255
250×160 250/160 250×160 161 116 255
250×200 250/200 250×200 161 136 255
