Stub End SDR11/17

There are more than 2000 product specifications in five series of electric melting, hot melting, welding, steel-plastic conversion, and ball valve. Borealis imported polyethylene (PE) special blending ingredients are used in the industry with many varieties and complete specifications.

Make an inquiry

Product Description

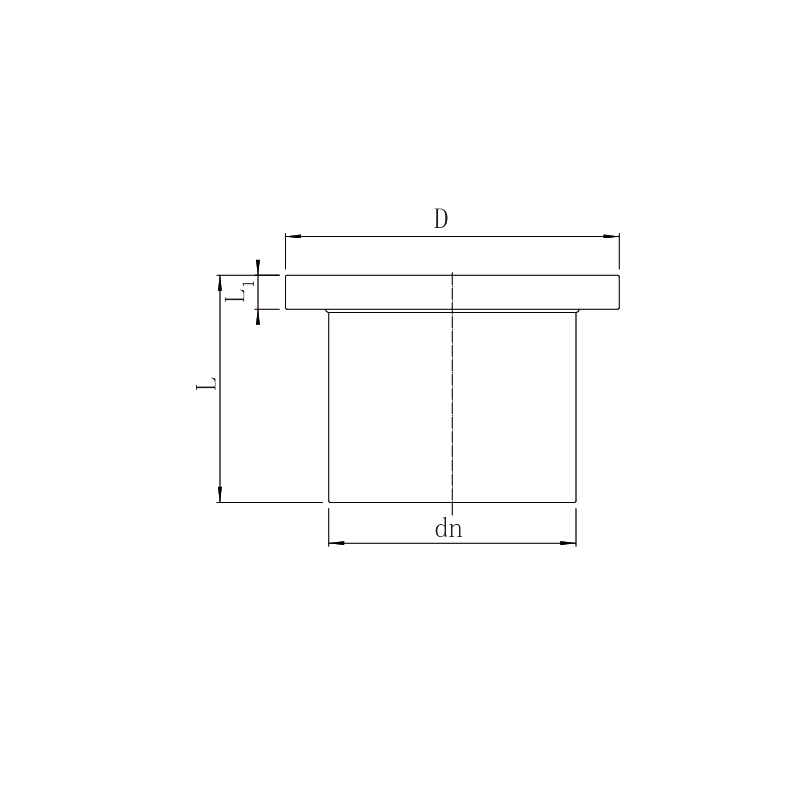

Specification dn	Item	dn	L	L₁	D
40	MP040	40	82	11	81
50	MP050	50	84	13	88
63	MP063	63	96	15	104
75	MP075	75	99	16	120
90	MP090	90	110	17	138
110	MP110	110	111	20	158
125	MP125	125	156	26	211
160	MP160	160	147	26	212
180	MP180	180	153	27	212
200	MP200	200	172	27	212
225	MP225	225	195	35	268
250	MP250	250	192	32	320
280	MP280	280	218	33	320
315	MP315	315	174	39	371
355	MP355	355	190	44	430
400	MP400	400	192	43	484
450	MP450	450	225	45	530
500	MP500	500	235	45	585
560	MP560	560	295	62	685
630	MP630	630	240	70	683
710	MP710	710	280	60	587
800	MP800	800	340	92	900
900	MP900	900	277	67	1005
1000	MP1000	1000	310	110	1105
1200	MP1200	1200	358	116	1327
