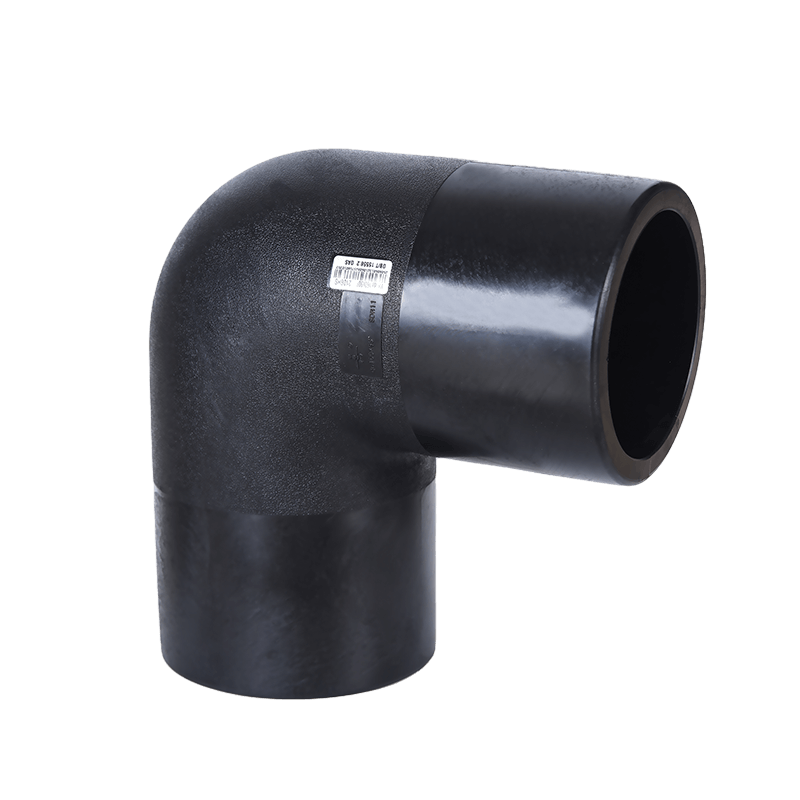

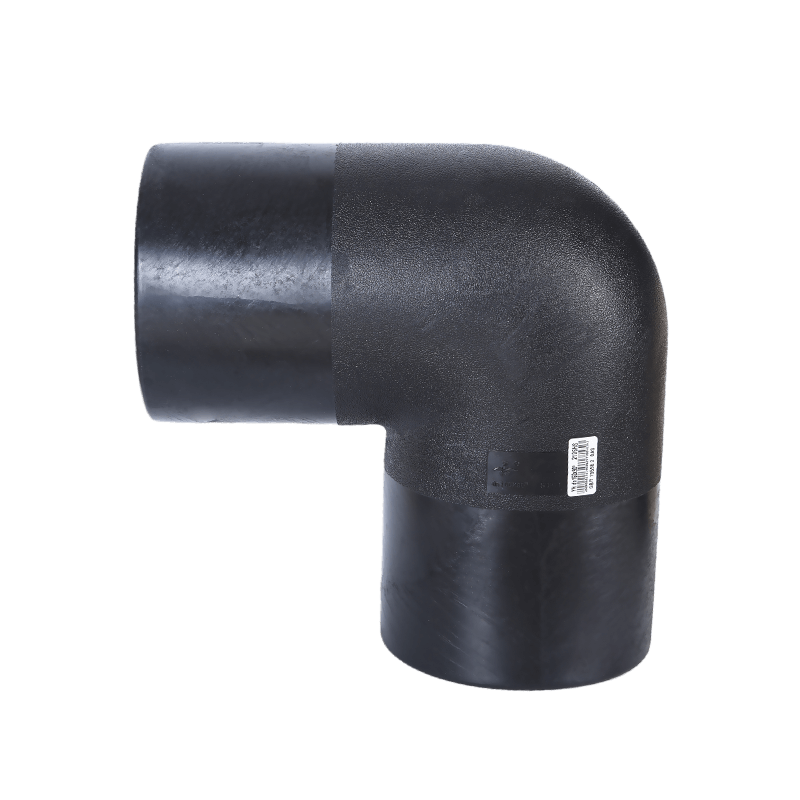

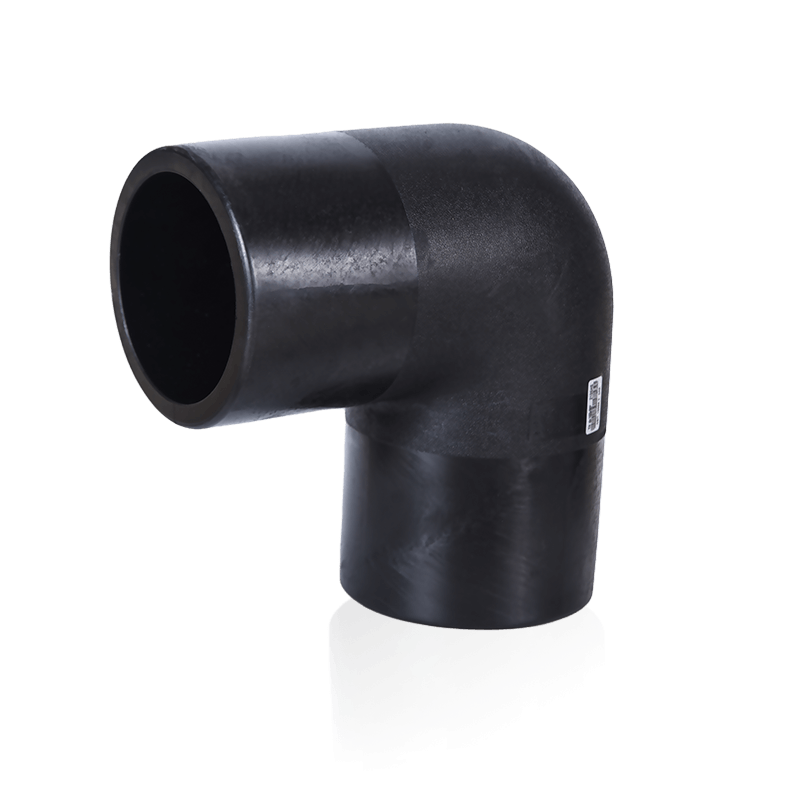

Butt Fusion 90° Elbow SDR11

There are more than 2000 product specifications in five series of electric melting, hot melting, welding, steel-plastic conversion, and ball valve. Borealis imported polyethylene (PE) special blending ingredients are used in the industry with many varieties and complete specifications.

Make an inquiry

Product Description

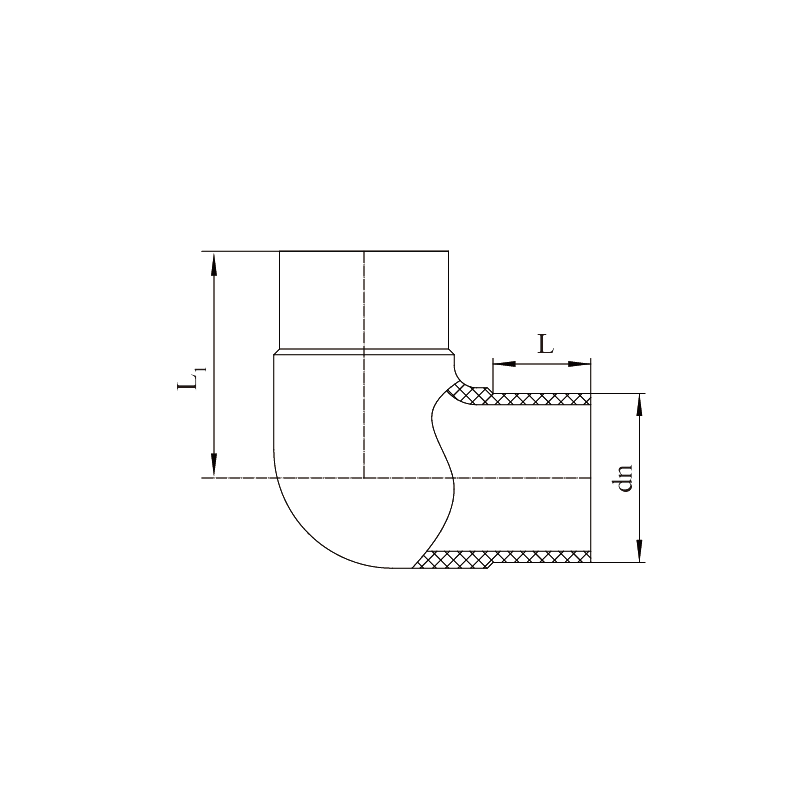

Specification dn	Item	dn	L	L₁
20	ML90°020	20	45	65
25	ML90°025	25	45	68
32	ML90°032	32	45	63
40	ML90°040	40	49	74
50	ML90°050	50	63	90
63	ML90°063	63	64	98
90	ML90°090	90	83	125
110	ML90°110	110	90	155
125	ML90°125	125	87	159
140	ML90°140	140	92	190
160	ML90°160	160	107	212
180	ML90°180	180	105	223
200	ML90°200	200	120	239
250	ML90°250	250	129	267
315	ML90°315	315	160	345
355	ML90°355	355	164	360
400	ML90°400	400	179	374
450	ML90°450	450	195	365
500	ML90°500	500	212	440
